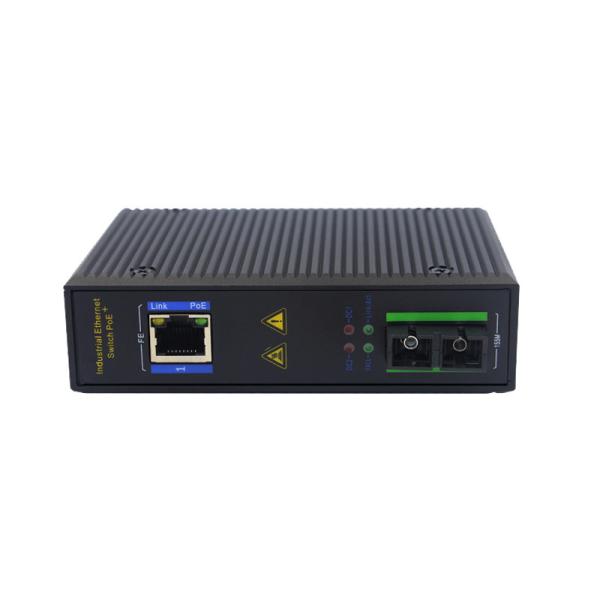

Hardened Poe Switch Din Rail 1000Mbps 1FX Port 1UTP Port

Shenzhen Miray Communication Technology Co., Ltd.
Contact Now

Hardened Poe Switch Din Rail 1000Mbps 1FX Port 1UTP Port

Brand Name : Mray

Model Number : MR-I1F1T-SC20

Certification : CE, FCC, RoHs, ISO9001

Place of Origin : Shenzhen, China

MOQ : 1 piece

Price : Negotiable

Payment Terms : T/T, Western Union, L/C

Supply Ability : 10000pcs/week

Delivery Time : 1~2 days for samples

Packaging Details : 1pcs/box, 30pcs per standard export carton

Product name : Hardened Mini Industrial Media Converter 10/100Mbps

Data rate : 10/100Mbps

Anti-static : 8KV-15KV

MTBF : 100000 hours

Ports : 1 RJ45 ports

Operating temperature : -40℃~ +85℃

Contact Now

Hardened Mini Industrial Media Converter 10/100Mbps 1FX Port 1UTP Port

Description

Miray’s MR-I1F1T-SC20 Industrial fiber media converter uses store and forward, no fan, low power consumption design, has the advantages of convenient use, small size, simple maintenance and so on. The product design complies with the Ethernet standard, adding lightning protection and anti-static protection measures, a wide range of working temperature of -30℃ ~ +75℃, stable and reliable performance, and can be widely used in intelligent transportation, telecommunications, security, financial securities, customs, shipping , Electric power, water conservancy and oil fields and other broadband data transmission fields.


Features

1 Port 10/100Mbps RJ45 with Auto Uplink , 1 port 100Mbps SC

• Automatic MAC address learning and aging

• Automatically support IGMP (Multicasting)

• 10/100Mbps Auto-negotiation , auto-MDI-MDI-X

• LED indicators for monitoring power/link/activity

• Supports 10/100Mbps-Full/Half-duplex

• Supports Wall-mount and DIN-Rail installation for lightning protection

• Supports Daisy-Chain connection

• Supports Broadcast Storm Control

• Super lightening protection, IP40 protection

• Excellent heat elimination without cooling fan

• Redundant dual DC power inputs

• Redundant Power Inputs

• Apply to Urban Intelligent Traffic Monitoring System (ITS), Safe City

• Harsh industrial environment or higher requirement

• -40℃~+85℃ operating temperature range

• 5-Year Warranty

Technical Specification

Product Name

2 ports 10/100M Industrial Media Converter

Model

MR-I1F1T-SC20

Interface

1x 10/100M copper RJ-45 ports with 1*100M Fiber port

Network Protocols

Support IEEE802.3, IEEE802.3u, IEEE802.3x

Network Media

10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter)

Performance Specification

Bandwidth:1.0Gbps (non-blocking)

Packet Buffer Memory:1M

100M Packet Forwarding Rate:148800pps/port

Address Table: 1K

MTBF: 300,000 hours

LED Display

Fiber Run indicator: UPL

Power supply indicator: PWR

ACT indicator: LED-Yellow

LINK indicator: LED-Green

Power Supply

Input Voltage: DC24V (5~55V)

Type of input: 3 bits terminal block

load consumption: MAX 5W

Input:DC24V1A

Working Environment

Working temperature: -40~75℃

Storage temperature: -40~85℃

Relative Humidity: 5%~95 %( no condensation)

Industry Standard

EMI: FCC Part 15, CISPR (EN55022) class A

EMS: EN61000-4-2 (ESD)

EN61000-4-4 (EFT)

EN61000-4-5 (Surge)

Shock: IEC 60068-2-27

Free fall: IEC 60068-2-32

Vibration: IEC 60068-2-6

Mechanical Structure

Shell: IP30 protect grade, metal shell

Installation: DIN-Rail or Wall mounts

Certification

CE mark, commercial

FCC Part 15 Class B

VCCI Class B

EN 55022 (CISPR 22), Class B

MTBF

300,000 hours

Warranty

5 years


Application


Hardened Poe Switch Din Rail 1000Mbps 1FX Port 1UTP Port

Dimension

Hardened Poe Switch Din Rail 1000Mbps 1FX Port 1UTP Port

Installation

Hardened Poe Switch Din Rail 1000Mbps 1FX Port 1UTP Port

Product Packing

Hardened Poe Switch Din Rail 1000Mbps 1FX Port 1UTP Port

Reliablity Assurance

Hardened Poe Switch Din Rail 1000Mbps 1FX Port 1UTP Port

Hardened Poe Switch Din Rail 1000Mbps 1FX Port 1UTP Port

For more details, welcome to inquire us freely.
